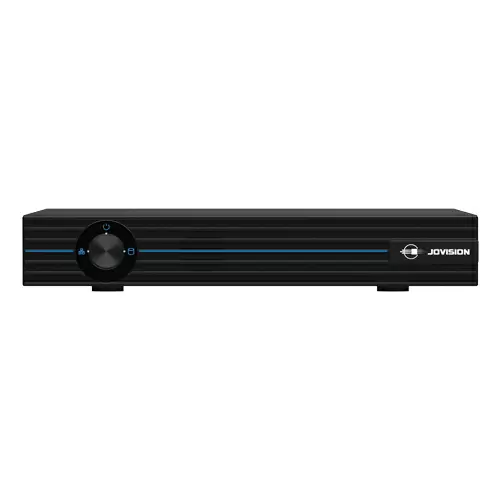

Jovision 4CH H.265 4K Network Video Recorder System
15 sold in last 24 hours
4CH Network Video Recorder with 1HDD support. IP Camera Input: 4CH/8CH/16CH 720P/960P/1080P/3MP/4MP/5MP/8MP, Recording Resolution: 8MP/5MP/4MP/3MP/1080P/960P/720P, Preview Resolution: Multi-channels@Sub-stream/Single channel@Main Stream, Playback Resolution: 1ch 8MP,1ch 5.0MP, 1ch 4.0MP, 1ch 3.0MP,2ch 1080P, HDMI Output: 3840×2160,2560X1440,1920×1080,1440×900,1280×1024,1280×720,1024×768, VGA Output: 1920×1080,1440×900,1280×1024,1280×720,1024×768, Network Interface: 1RJ-45 10/100Mbps Self-adaptive Ethernet Interface, Built-in Speaker, 1 SATA Hard Disk Interface (Up to 10TB each)
JVS-ND7604-HP
4CH H.265 4K NVR
Features
- Adopt the new VStar GUI, easy to operate and run smoothly.
- Support intelligent coding VSmart, greatly reducing storage space.
- Improved compatibility for hard disks, and up to 10TB.
- Supports multiple intelligent analyses such as motion detection, regional intrusion, tripwire detection, passenger flow statistics, scene changes, and occlusion alarms.
- Support the preview, storage and playback of 4K HD network video.
- Support built-in speakers, realize real-time monitoring of video recording, support voice alarm.
Specifications
| Model | JVS-ND7604-HP |
| Video and Audio | |
| IP Camera Input | 4Channel |
| Audio Input/ Output | IPC Audio input/Audio output through HDMI |
| Built-in Speaker | Support |
| Bandwidth I/O | 80Mbps/80Mbps |
| Display | |

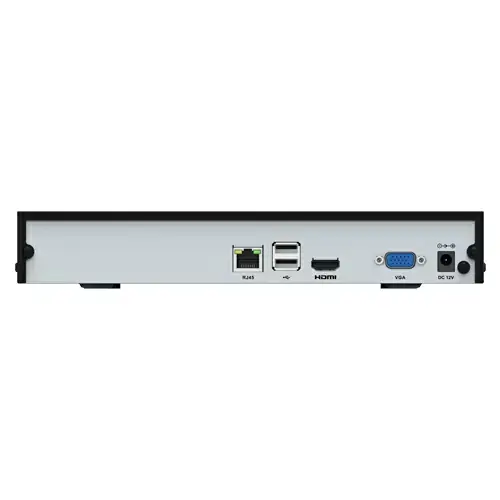

| Interface | 1 HDMI, 1 VGA |
| Resolution | HDMI: 3840×2160@30Hz/2560×1440@30Hz/1920×1080 1440×900/1280×1024/1280×720/1024×768 |
| VGA: 1920×1080,1440×900,1280×1024,1280×720,1024×768 | |
| Max Decoding | 1ch 4K 15fps;4ch@ 5.0MP/4.0MP/1080P/960P/720P 25fps |
| Multi-screen Display | 1/4 |
| OSD | Camera Name & Time, Recording, Alarm Detecting , Remote connection, Volume, Channel Number |
| Recording | |
| Compression | H.265/H.264 |
| Resolution | 1Ch 4K;4Ch 5.0MP/4.0MP/1080P/960P/720P |
| Record Mode | Manual, Schedule, MD |
| Video Detection and Alarm | |
| Trigger Events | Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer |
| Video Detection | Motion Detection, No Video Detection |
| Playback and Backup | |
| Sync Playback | 1ch 4K,1ch 5.0MP, 1ch 4.0MP, 1ch 3.0MP, 2ch 1080P |
| Search Mode | Channel number / recording type / date |
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom |
| Backup Mode | FAT32 USB Device/Network |
| Network | |
| Interface | 1 RJ-45 port (10/100Mbps) |
| Network Function | TCP/IP, DHCP, UDP, SMTP, NTP |
| Smart Phone | iPhone, Android |
| Interoperability | ONVIF 2.4 |
| Storage | |
| SATA | 1 SATA interfaces |
| Capacity | up to 10TB |
| General | |
| Power Supply | DC 12V |
| Consumption | ≤ 10 W (Without HDD) |
| Working Temperature | -100C~ 550C |
| Working Humidity | 10 % ~ 90 % |
| Dimensions | 260X47.5X225mm |
| Weight | ≤ 1.0kg (Without HDD) |
JVS-ND7604-HP 4CH H.265 1 SATA 4K NVR.pdf
| Brand | Jovision |
| IP Camera Input | 4 Channel |
| Compression | H.256+ / H.264 |
| H.D.D (SATA) | 1 |
