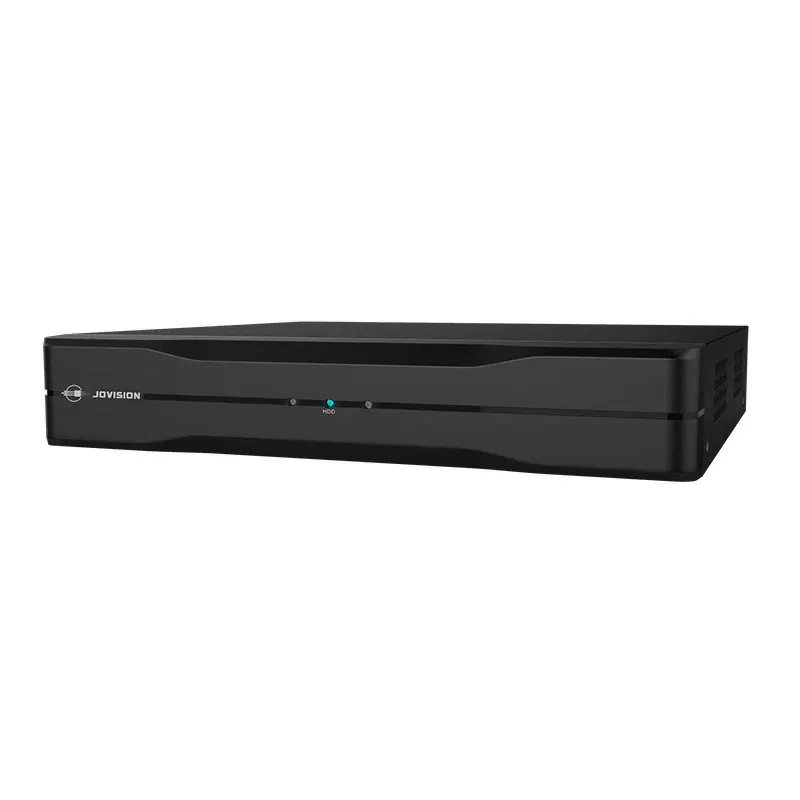

Jovision 4CH PoE Network Video Recorder System
6 sold in last 24 hours
4CH PoE Network Video Recorder with 1HDD support. IP Camera Input: 4CH PoE Input+4CH Non-PoE Input, 720P/960P/1080P/3MP/4MP/5MP, Playback Resolution: 1CH 5MP/1CH 4MP/1CH 3MP/2CH 1080P/16CH 960P/16CH 720P, 1 SATA Hard Disk Interface (Up to 10TB each), 2 pcs USB 2.0, Video Compression: H.264/H.265, Standard Color: Black
JVS-ND7004-PD01
4CH POE H.265 NVR
Key Features
• Adopt the new VStar GUI, easy to operate and run smoothly
• Support intelligent coding VSmart, greatly reducing storage space
• Improved compatibility for HDD. Support max. of 10TB
• Support Intelligent Detection and Human Detection
• Support 4PoE + 4 Non-PoE access (Total of 8 Cameras)
Specifications
| Model | JVS-ND7004-PD01 |
| Video & Audio | |
| IP Camera Input | 4CH PoE + 4CH Non-PoE |
| Audio Input/ Output | 1 Channel 3.5mm Jack Output,8 Channel Audio output through HDMI |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | HDMI: 3840x2160, 1920x1080, 2560x1440, 1440x900, 1280x1024, 1280x720, 1024x768 |
| VGA: 1920x1080, 1440x900, 1280x1024, 1280x720, 1024x768 | |
| Max Decoding | 8CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p @25fps |
| Multi-screen Display | Port Binding 1/ 4Non-port Binding 1/ 4/ 5/ 6/ 7/ 8/ 9 |
| OSD | Camera Name & Time, Recording, Alarm Detecting, Remote connection, Volume, Channel Number |
| Recording | |
| Compression | H.265/H.264 |
| Resolution | 8CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p |
| Record Mode | Manual, Schedule, Motion Detection |
| Video Detection & Alarm | |
| Trigger Events | Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer |
| Video Detection | Motion Detection, No Video Detection |
| Playback & Backup | |
| Sync Playback | 2CH 5.0MP/ 3CH 4.0MP/ 4CH 3.0MP |
| Search Mode | Time /Date, Schedule, Motion Detection |
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom |
| Backup Mode | FAT32 USB Device/ Network |
| Network & Interfaces | |
| Interface | 1 RJ45 Port (10/100/1000Mbps) |
| PoE Interface | 4x Port 100Mbps IEEE802.3af PoE |
| Network Function | TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE |
| Smart Phone | Support iOS, Android App |
| Interoperability | ONVIF 2.4 |
| BandwidthI/O | 40Mbps/40Mbps |
| Storage | |
| SATA | 1 SATA interface |
| Capacity | Up to 10TB |
| USB | 2x USB |
| General | |
| Power Supply | 52V DC |
| Consumption | ≤50W (Without HDD) |
| Working Temperature | -10°C ~ 55°C |
| Working Humidity | 10% ~ 90% |
| Dimensions | 260x219x45mm |
| Weight | ≤1.05Kg (Without HDD) |
| Brand | Jovision |
| IP Camera Input | 4 Channel |
| Compression | H.256+ / H.264 |
| PoE | 4 Ports |
| H.D.D (SATA) | 1 |
